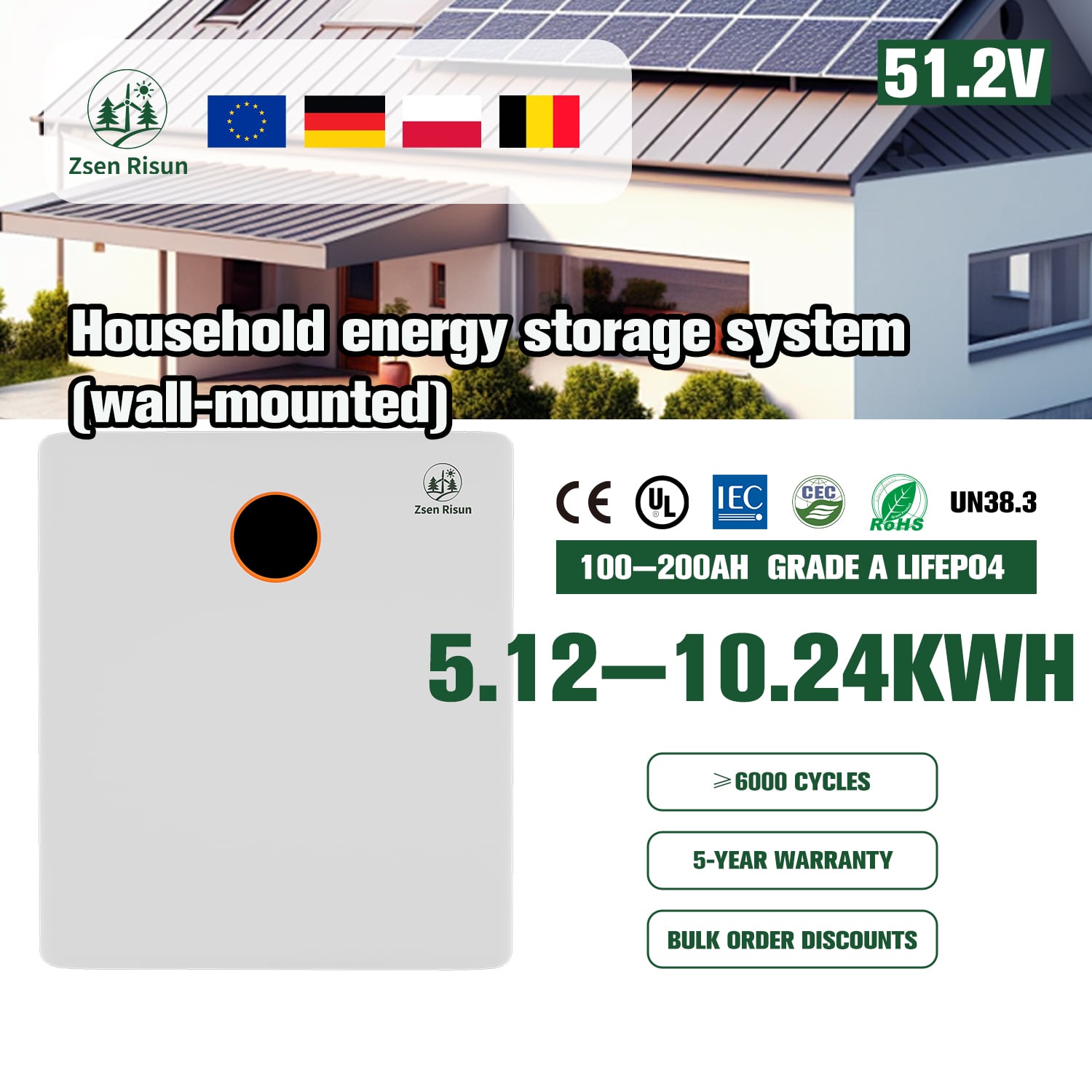

Household energy storage system (wall-mounted)
The BAT-LV-W series wall-mounted residential energy storage batteries include two core models: BAT-5K-LV-W and BAT-10K-LV-W. Both models utilize lithium iron phosphate (LiFePO4) cells and have a uniform rated voltage of 51.2V.
The main difference lies in their capacity and energy: the 5K model has a capacity of 100Ah/5.12kWh, while the 10K model has a capacity of 200Ah/10.24kWh.
This series is designed for indoor wall-mounted installation and features a wide operating temperature range (charging 0-55℃, discharging -20-60℃), a cycle life of ≥6000 cycles (80% DOD), IP21 protection rating, and supports multiple communication protocols including RS232/CAN/RS485. It has also obtained international certifications such as CB, UL, and CE, making it a highly reliable and long-lasting energy storage solution for homes.
- Overview
- Recommended Products
BAT-LV-W Series Wall-mounted Residential Energy Storage Battery: Redefine Home Energy Independence
In an era where energy security, sustainability, and cost-efficiency are at the forefront of household priorities, the BAT-LV-W Series Wall-mounted Residential Energy Storage Battery emerges as a game-changing solution for modern homeowners. Engineered with cutting-edge lithium iron phosphate (LiFePO4) technology and optimized for indoor residential use, this series—comprising two core models (BAT-5K-LV-W and BAT-10K-LV-W)—delivers unrivaled performance, durability, and flexibility, empowering households to take full control of their energy consumption and reduce reliance on grid power.
At the heart of the BAT-LV-W Series lies its premium LiFePO4 cell technology, a choice that sets it apart from conventional lithium-ion batteries. Unlike other chemistries, LiFePO4 cells offer inherent safety advantages, including resistance to thermal runaway, overheating, and short-circuit risks, making them ideal for indoor installation. Both models share a nominal voltage of 51.2V, ensuring compatibility with most residential solar inverters and energy management systems, while their capacity differentiates to meet diverse household needs: the BAT-5K-LV-W boasts a 100Ah nominal capacity (5.12kWh of usable energy), perfect for small to medium-sized homes with moderate energy demands, while the BAT-10K-LV-W scales up to 200Ah (10.24kWh) to support larger households, high-power appliances, or extended off-grid operation.
Product Parameters
BAT-LV-W Series Wall-mounted Residential Energy Storage System | ||
|
|
|
Technical Specifications |
|
|
|
|
|
Parameter |
BAT-5K-LV-W |
BAT-10K-LV-W |
Nominal Voltage |
51.2V |
51.2V |
Nominal Capacity |
100Ah |
200Ah |
Nominal Energy |
5.12kWh |
10.24kWh |
Charge Cut-off Voltage |
56.16V |
56.16V |
Discharge Cut-off Voltage |
45.6V |
45.6V |
Recommended Charge/Discharge Current |
50A |
100A |
Peak Discharge Current |
200A/1S |
400A/3S |
Max Continuous Charge/Discharge Current |
100A |
200A |
Charge Temperature Range |
0–55°C |
0–55°C |
Discharge Temperature Range |
-20–60°C |
-20–60°C |
Storage Environment (50% SOC) |
20°C–45°C for first 3 months; ≤25°C+3°C for extended storage; Humidity ≤85%+20%RH |
|
Operating Environment |
Indoor |
Indoor |
Installation Method |
Wall-mounted |
Wall-mounted |
Cell Type |
Lithium Iron Phosphate (LiFePO4) |
Lithium Iron Phosphate (LiFePO4) |
Cycle Life |
≥6,000 cycles (at 80% DOD) |
≥6,000 cycles (at 80% DOD) |
Cooling Method |
Natural Air Cooling |
Natural Air Cooling |
Protection Class |
IP21 |
IP21 |
Certifications |
CB, IEC62619, UL1973, UL9540A, UKCA, CE-EMC, CE-GPSD, EN62619, UN38.3, MSDS |
|
Dimensions (L×W×H) |
442*500*142mm |
442*820*142mm |
Net Weight/Gross Weight |
41.88kg |
78.85kg |
Communication Interface |
RS232/CAN/RS485 |
RS232/CAN/RS485 |
Performance is a cornerstone of the BAT-LV-W Series, with tailored charge/discharge parameters that balance power and longevity. The BAT-5K-LV-W features a recommended charge/discharge current of 50A, a peak discharge current of 200A (1-second duration), and a maximum continuous charge/discharge current of 100A—enough to power essential home appliances like refrigerators, lighting, and small HVAC systems during grid outages. The BAT-10K-LV-W elevates this performance with a 100A recommended charge/discharge current, 400A peak discharge (3-second duration), and 200A maximum continuous current, capable of supporting high-wattage devices such as electric stoves, washing machines, and electric vehicle chargers. Both models adhere to precise voltage thresholds (charge cut-off at 56.16V, discharge cut-off at 45.6V) to prevent overcharging or deep discharge, safeguarding battery health and extending service life.
Durability and longevity are hallmarks of the BAT-LV-W Series, with a cycle life of over 6,000 cycles at 80% depth of discharge (DOD)—a benchmark that translates to more than 15 years of reliable use for the average household. This exceptional lifespan is further enhanced by the battery’s robust temperature tolerance: it operates seamlessly in charging temperatures ranging from 0°C to 55°C and discharge temperatures from -20°C to 60°C, making it suitable for climates with extreme temperature fluctuations. Even in storage (at 50% state of charge), the battery maintains stability for up to 3 months in 20°C–45°C environments, and extended storage is supported at ≤25°C (±3°C) with humidity control (≤85% ±20% RH), ensuring minimal capacity degradation over time.

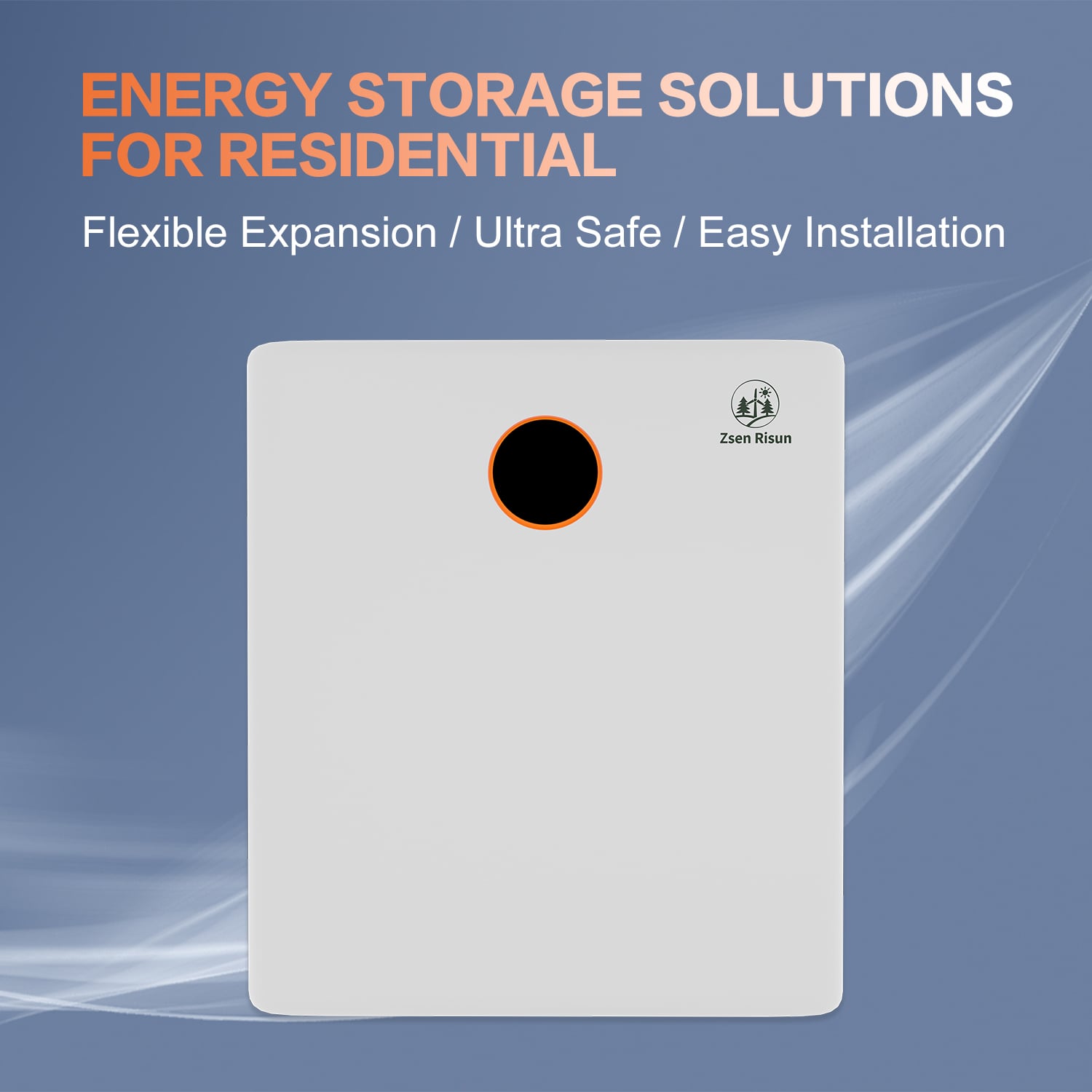

Installation and usability are prioritized in the BAT-LV-W Series’ design. As a wall-mounted solution, it eliminates the need for floor space, making it ideal for apartments, small homes, or any living space where space efficiency is critical. The compact dimensions—442×500×142mm for the BAT-5K-LV-W (net weight 41.88kg) and 442×820×142mm for the BAT-10K-LV-W (net weight 78.85kg)—ensure easy mounting and integration into existing home layouts, while natural air cooling eliminates the need for noisy, high-maintenance fans or liquid cooling systems. The IP21 protection rating shields the battery from dust and dripping water, adding an extra layer of safety for indoor use.
Installation and usability are prioritized in the BAT-LV-W Series’ design. As a wall-mounted solution, it eliminates the need for floor space, making it ideal for apartments, small homes, or any living space where space efficiency is critical. The compact dimensions—442×500×142mm for the BAT-5K-LV-W (net weight 41.88kg) and 442×820×142mm for the BAT-10K-LV-W (net weight 78.85kg)—ensure easy mounting and integration into existing home layouts, while natural air cooling eliminates the need for noisy, high-maintenance fans or liquid cooling systems. The IP21 protection rating shields the battery from dust and dripping water, adding an extra layer of safety for indoor use.
Connectivity and compatibility are key strengths of the BAT-LV-W Series, with support for RS232, CAN, and RS485 communication protocols. This multi-protocol capability allows seamless integration with solar inverters, smart home energy management systems, and remote monitoring platforms, enabling homeowners to track battery state of charge (SOC), voltage, current, and temperature in real time. Whether paired with a rooftop solar system to store excess energy for evening use, or as a backup power source for grid outages, the BAT-LV-W Series adapts to diverse energy scenarios with ease.
Compliance with global safety and quality standards underscores the reliability of the BAT-LV-W Series. It holds a comprehensive suite of certifications, including CB, IEC62619, UL1973, UL9540A, UKCA, CE-EMC, CE-GPSD, EN62619, UN38.3, and MSDS. These certifications validate its adherence to international safety, performance, and environmental regulations, giving homeowners and installers confidence in its quality and compliance with regional requirements across Europe, North America, and beyond.
Beyond technical specifications, the BAT-LV-W Series aligns with the global shift toward sustainable energy. By storing solar energy generated during the day for use during peak demand hours or grid outages, it reduces reliance on fossil fuel-based grid power, lowers electricity bills, and cuts household carbon emissions. Its long cycle life also minimizes waste, as the battery requires replacement far less frequently than traditional lead-acid batteries, contributing to a more sustainable energy ecosystem.
In summary, the BAT-LV-W Series Wall-mounted Residential Energy Storage Battery combines safety, performance, durability, and usability into a streamlined package that meets the diverse needs of modern households. Whether you are looking to reduce energy costs, enhance grid independence, or ensure backup power during outages, the BAT-5K-LV-W and BAT-10K-LV-W offer a scalable, reliable solution that stands the test of time. Backed by international certifications and engineered for real-world residential use, this series is more than just a battery—it is a cornerstone of a smarter, more sustainable home energy system.
