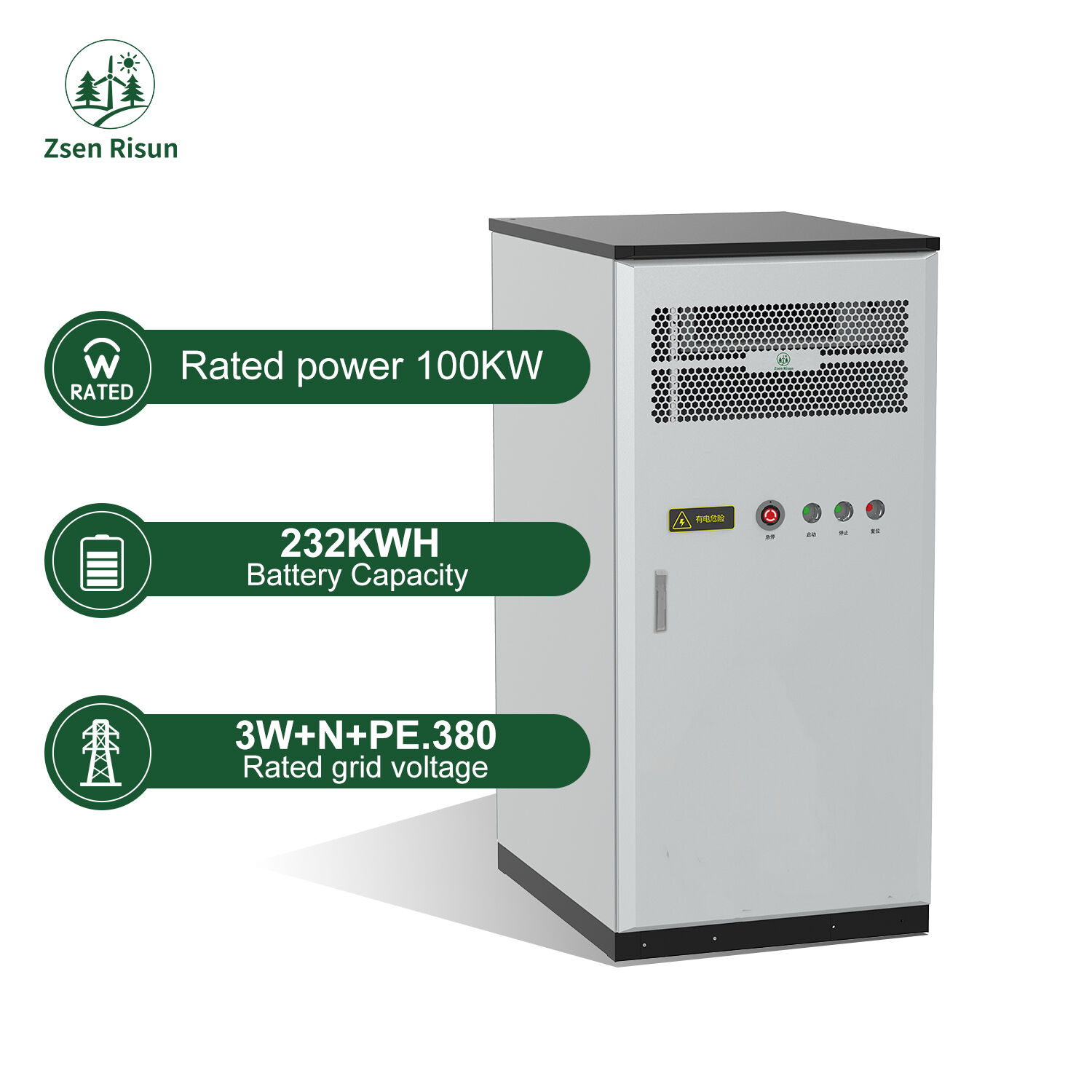

Energy storage integrated cabinet 100kW232kWh

The battery subsystem is a key differentiator of the ESS1-100kW/232kWh, built around high-quality 280Ah lithium iron phosphate (LFP) battery cells—one of the most reliable and safe battery chemistries available today. LFP cells are renowned for their long cycle life, thermal stability, and resistance to thermal runaway, making them ideal for large-scale energy storage applications. The system comprises 5 individual battery PACKs, each with a capacity of 46.59kWh, totaling a system capacity of 232kWh. This modular design not only simplifies installation and maintenance but also enhances scalability—users can easily expand their energy storage capacity by adding additional PACKs if needed. The battery system can operate in a relative humidity range of 0–95% (non-condensing), making it suitable for use in humid environments without the need for additional humidity control equipment.

Thermal management is critical for maximizing battery life and performance, and the ESS1-100kW/232kWh addresses this with a liquid cooling system. Unlike air cooling, liquid cooling provides uniform temperature distribution across all battery cells, preventing hotspots that can accelerate battery degradation and reduce cycle life. This advanced cooling system ensures the battery operates within its optimal temperature range, even during prolonged use (the system supports a continuous runtime of 2 hours at full load), and contributes to the impressive battery life of ≥6000 charge-discharge cycles—far exceeding the lifespan of many competing systems. For context, 6000 cycles translate to over 15 years of reliable operation in typical applications (assuming 1 cycle per day), making the ESS1-100kW/232kWh a cost-effective long-term investment.

In terms of physical specifications, the ESS1-100kW/232kWh has compact dimensions of 1000mm (length) × 2200mm (width) × 1380mm (depth), making it suitable for installation in limited spaces such as industrial warehouses, commercial basements, or utility substations. It weighs 2700kg, which balances structural stability with ease of transportation and installation. The system has an IP55 protection grade, meaning it is dust-tight and protected against water jets from any direction—this makes it suitable for both indoor and semi-outdoor installations, even in harsh environmental conditions. The operating temperature range of -25℃ to 60℃ further expands its applicability, allowing it to perform reliably in cold climates (e.g., northern regions) and hot, arid environments (e.g., desert areas).

For connectivity and monitoring, the ESS1-100kW/232kWh is equipped with RS485 and LAN communication ports, supporting the widely adopted Modbus communication protocol. Modbus is a standard protocol in industrial automation, enabling seamless integration with building management systems (BMS), energy management software, and grid control systems. This allows users to remotely monitor key parameters (e.g., battery state of charge, temperature, power output), perform diagnostics, and adjust settings in real time—maximizing operational efficiency and minimizing downtime. Additionally, the system offers optional grid connection/disconnection devices, giving users flexibility in how they integrate the system with the grid (e.g., for islanded operation during grid outages).
